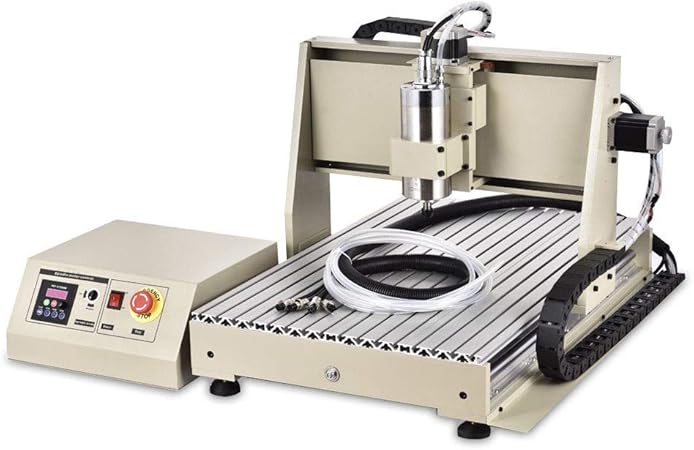

LiFuJunDong 4 Axis USB CNC6040 Router Engraving Machine 3D Milling Machine w/Controller 110V 1.5KW VFD Water-Cooling Router Engraving Machines for Metal, Wood, Glass and Plastic (6040 1.5KW 4AXIS)
Price Available
Check Current Price
CHECK ON AMAZONLiFuJunDong First Impressions
"I am glad I bought it."I bought this one and I am pretty happy. Does not require a skilled operator to run. This is a good Milling Machine for the money. In this instance, I was pleasantly surprised. The assembly instructions were not bad at all.
LiFuJunDong Features & Specs

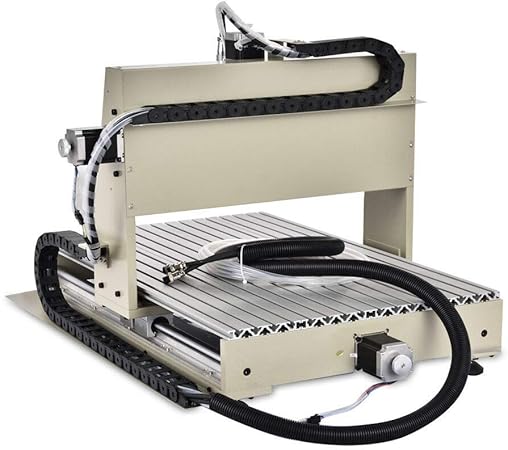

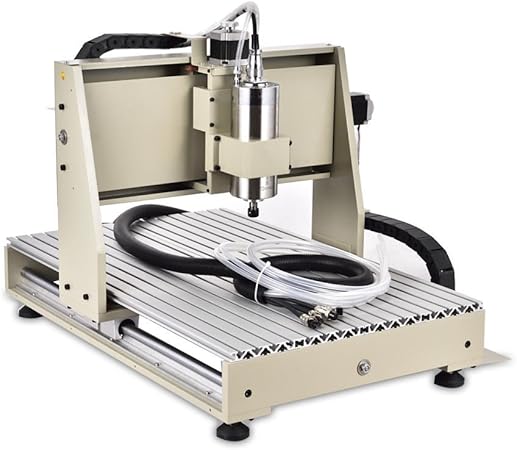

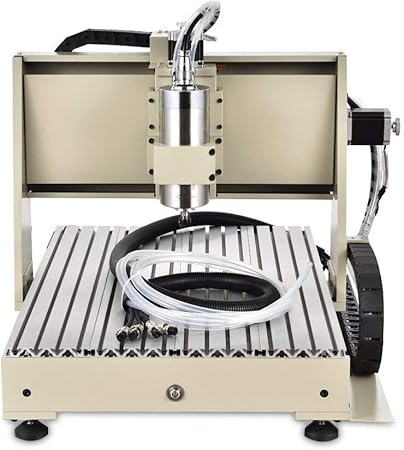

- ENGRAVING MACHINE PARAMETERS】 X, Y, Z Working Area: 600(Y)*390（X）*120(Z)mm Outside dimension: 865*680*570mm（L*W*H） Table size: 770（Y）*490（X）mm Lathe structure: 6061/6063 Aluminium alloy Max. Feeding height: ≤100mm Drive unit: X axis---1605 Ball Screws Y axis---1605 Ball Screws Z axis---1204 Ball Screws Sliding unit: X axis---High intensity Chromeplate shaft Y axis---High intensity Chromeplate shaft Z axis---High intensity Chromeplate shaft Stepping motor: 57 two-phase 3A 150N.cm
- SPINDLE MOTOR-1】 Outside dimension: 65*158mm Material: 304 stainless steel, Copper coil, Pressure cast aluminum pipe water jacket VOLTS, current, power: AC110V, 60Hz, 5A, 1.5 KW VFD Spindle motor: 1.5 KW Water Cooled Spindle speed: 24000 rpm Max working frequency: 400Hz Principal axis collet: ER11collet, Standard configuration :6mm Nut Model: ER11-A Cooling: Water-cooling Speed mode: By adjusting the VFD output voltage and operating frequency from 0-24000RPM
- SPINDLE MOTOR-2】Lubrication way: lubricated by high grease Repeat accuracy: 0.05mm Spindle precision: radial beat acuities 0.03mm Carving Instructions: G code / TAB files / nc file / NCC files Communication interface: through USB connection with computer Working Speed: 50-1500mm / min (different material with different speed settings) Maximum Idle speed: 0-1500mm/min
- HIGHLIGHTS OF WATER COOLING SYSTEM 】It can cool the spindle and protect the machine Avoid the spindle burn out Can engrave the high hardness or metal

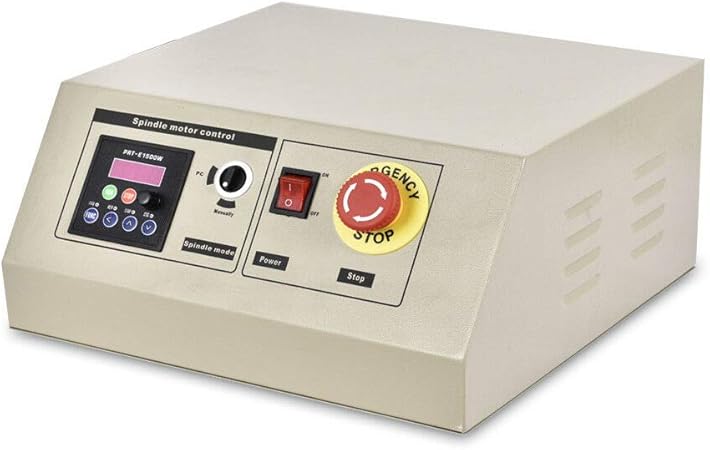

- DESCRIPTIONS】Industrial fit for engraving machine controller was designed system Waterproof design, very durable, anti-dirt, oil spray Power by USB port Dimensions: 22 x 8 x 3cm The usb self-check light, you can type the " scroll" on the keyboard to activate it. Directional motion control: X+, X-, Y+, Y-, Z+, Z-, A+, A- Feed rate control: F+, F- Jog rate: J+, J- Spindle speed: speed up, slow down Programming: E-stop, cycle start, spindle on/off, Redo, single step, original point
